为获得蒸汽系统的最佳性能，实现能源节约，从蒸汽系统中有效排除冷凝水、空气和其它不凝性气体，且不泄露蒸汽是至关重要的。同时，冷凝水应尽可能送回锅炉房以提高系统效率，降低能耗。斯派莎克蒸汽疏水阀系列能为所有设备和应用提供最佳的疏水解决方案。

压力平衡式疏水阀

压力平衡式热静力蒸汽疏水阀可根据变化的蒸汽压力自动调整。

• 在起机和正常运行时，具有优越的排空性能。
• 相对其尺寸具有较大的排量。
• 坚固的内部设计确保其寿命长久。

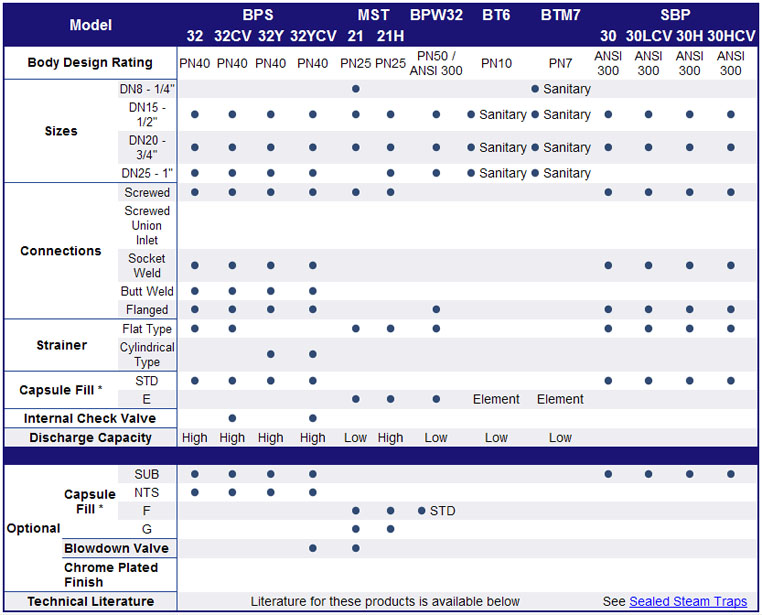

范围表（黄铜）

Note, Capsule Fill and Operation - When placing an order always state capsule fill:
Standard Capsule - Is marked with 'STD' or 'E' for operation at approximately 12°C below steam saturation temperature.
Optionally - The capsule can be supplied for sub-cooled 'SUB' or 'F' operation at approximately 24°C below steam saturation temperature.
For critical applications the 'NTS' or 'G fill capsule should be selected which operates at approximately 4°C below steam saturation temperature.

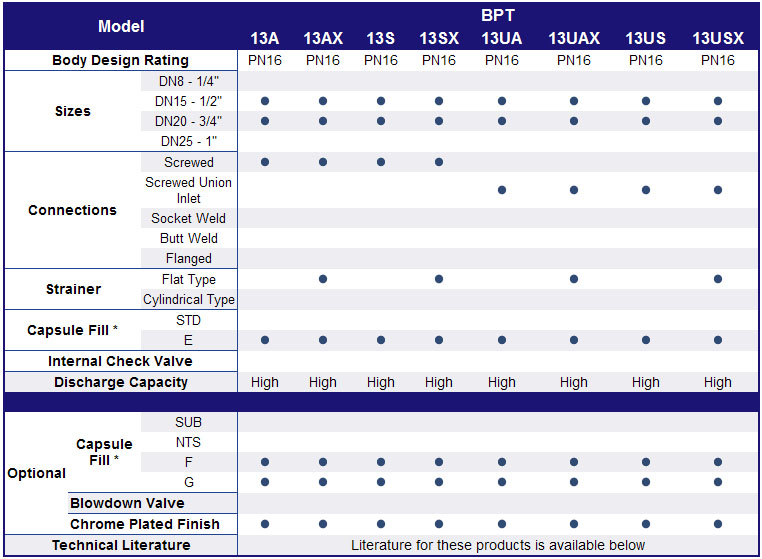

范围表（碳钢）

Note, Capsule Fill and Operation - When placing an order always state capsule fill:
Standard Capsule - Is marked with 'STD' or 'E' for operation at approximately 12°C below steam saturation temperature.
Optionally - The capsule can be supplied for sub-cooled 'SUB' or 'F' operation at approximately 24°C below steam saturation temperature.
For critical applications the 'NTS' or 'G fill capsule should be selected which operates at approximately 4°C below steam saturation temperature.

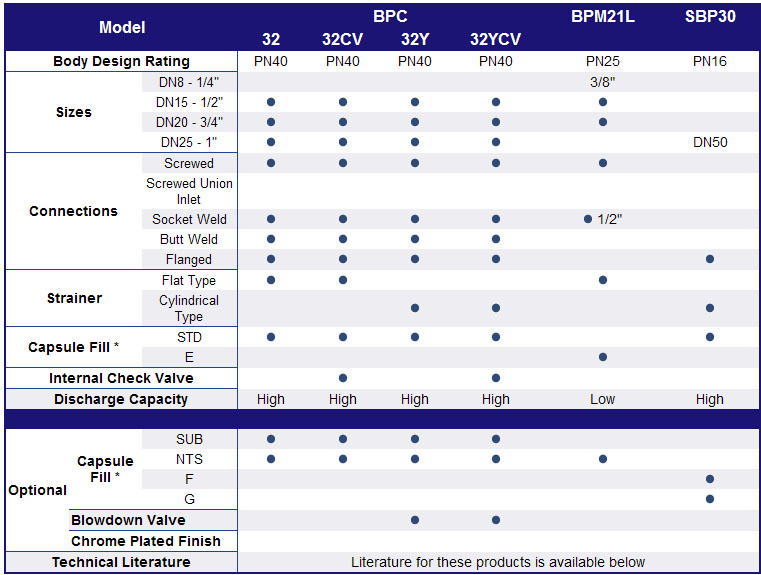

范围表(不锈钢)

Note, Capsule Fill and Operation - When placing an order always state capsule fill:
Standard Capsule - Is marked with 'STD' or 'E' for operation at approximately 12°C below steam saturation temperature.
Optionally - The capsule can be supplied for sub-cooled 'SUB' or 'F' operation at approximately 24°C below steam saturation temperature.
For critical applications the 'NTS' or 'G fill capsule should be selected which operates at approximately 4°C below steam saturation temperature.

销售手册  链接

压力高达32巴(bar)的平衡式热静力蒸汽疏水阀

BPW 32 压力平衡式圆片形蒸汽疏水阀

BT6-B 恒温除水阀
